Name: Compact Size Low Insertion Loss High Attenuation LTCC Filters for RF Microwave Applications
Brand: Shaanxi Shinhom Enterprise Co.,Ltd
SKU: Φίλτρα LTCC
Availability: InStock

Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Μιλήστε τώρα.

Χαρακτηριστικά

Προδιαγραφές

1: Συμπαγές Μέγεθος

2: Μικροσκοπημένο SMD συσκευασμένο σε χαμηλό προφίλ και ελαφρύ

3: Χαμηλή απώλεια εισαγωγής, υψηλή εξασθένηση

4: Υψηλή αντίσταση στη θερμότητα συγκόλλησης

5: Εξαλείψτε το θόρυβο σε ένα ευρύ φάσμα συχνοτήτων

6: Ιδέα για σχέδια υψηλής συχνότητας και περιορισμένου χώρου

Επισημαίνω:

Compact Size LTCC Filters

Low Insertion Loss RF Filters

High Attenuation Low Temperature Co-Fired Ceramic Filters

Βασικές πληροφορίες

Τόπος καταγωγής: Κίνα

Μάρκα: SHINHOM

Πιστοποίηση: RoHS/ISO/UL/CE/IATF16949/CNAS

Αριθμό μοντέλου: Φίλτρα LTCC

Έγγραφο: LTCC-Filters-_.pdf

Πληρωμής & Αποστολής Όροι

Χρόνος παράδοσης: 2~8 εβδομάδες

Όροι πληρωμής: L/C,T/T

Εκθεσιακός χώρος

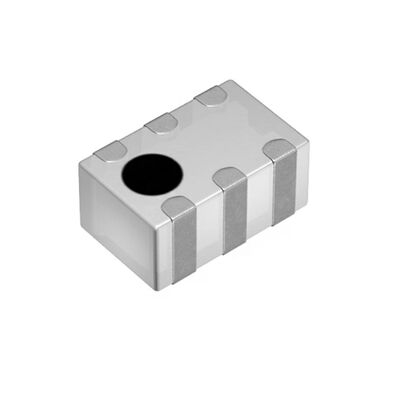

Compact Size Low Insertion Loss High Attenuation LTCC Filters for RF Microwave Applications

Περιγραφή προϊόντων

LTCC Filters Overview

Our LTCC Filters (Low Temperature Co-Fired Ceramic Filters) are precision RF and microwave filtering components built using advanced multilayer ceramic technology. By co-firing ceramic with conductive materials at low temperatures, LTCC filters achieve compact size, low insertion loss, high attenuation, and excellent temperature stability—making them ideal for size-constrained and high-performance RF front-end designs.

LTCC technology enables highly integrated, rugged filter structures that deliver consistent performance and repeatability across production volumes, providing designers with reliable solutions for modern communication systems.

Key Features

Miniaturized & Compact: Small footprint and lightweight LTCC multilayer construction supports dense PCB layouts and space-limited applications.
Low Insertion Loss: High-quality resonator design ensures minimal signal loss in the passband.
High Attenuation: Strong out-of-band rejection improves system selectivity and reduces noise.
Excellent Thermal Performance: LTCC materials and structure provide stable performance across wide temperature ranges.
Rugged & Reliable: Dense ceramic body offers mechanical robustness, suitable for harsh environments and industrial applications.
Customizable Designs: Frequency band, filter type, insertion loss, and termination style can be tailored to specific application requirements.

Applications

LTCC filters are widely used across many RF and microwave systems, including:

Wireless Communications: Cellular, Wi-Fi, IoT modules, and base stations.
RF Front Ends: Harmonic suppression and band selection in transceivers.
Consumer Electronics: Bluetooth, GPS, and RF signal conditioning.
Industrial & Test Equipment: Stability and reliability in measurement and control systems.
Automotive Radar & Telematics: High-performance filtering in advanced driver assistance systems (ADAS).

Why Choose Our LTCC Filters?

Advanced Multilayer Technology: High circuit density and RF performance enabled by LTCC fabrication.
Reliable & Repeatable: Stable electrical characteristics and tight tolerance control.
Compact & Rugged Package: Space-saving design suited for harsh environments.
Application Flexibility: Suitable for telecommunications, consumer electronics, automotive, and industrial systems.
